Salt Gear

Dolphin 1000 Windlass

$1,682.99 USD
$1,682.99 USD
Sale Sold out
Shipping calculated at checkout.
SKU:D1012-10

Product Features:

  • Designed for smooth & silent motor/gear operation under the deck and take up less deck space
  • Recommended for boats 32' - 45'
  • Up speed of 75'/min
  • Accepts 5/16" HT G4 Chain with 5/8" Rope (accepts all rope, all chain, or rope & chain combo)
  • Circuit breaker and stainless steel backing plate included
  • *For best results, pair with Salt Gear Brand Rode

Product Information

Description

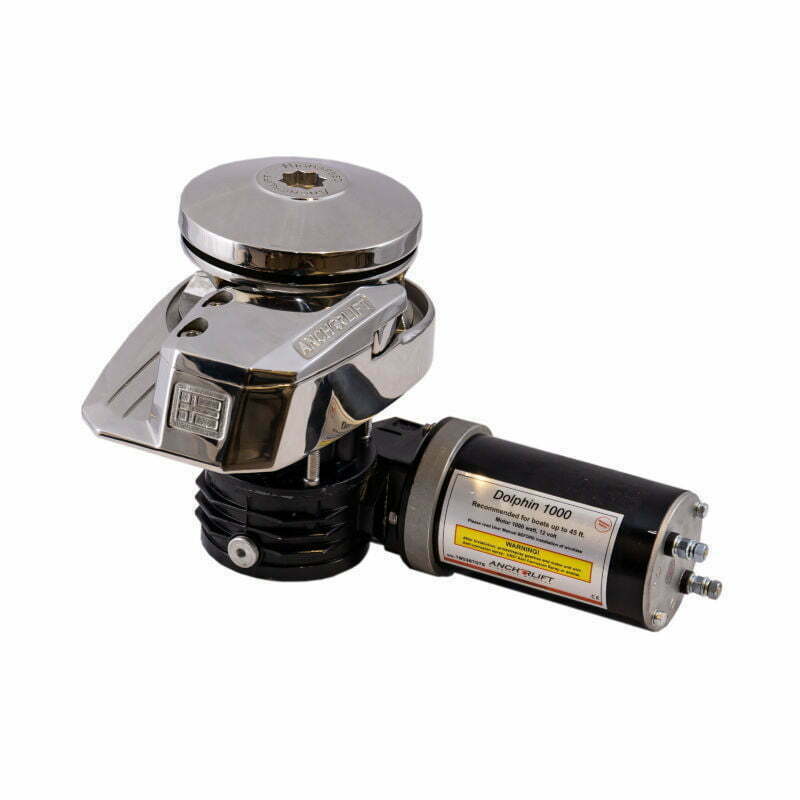

Ideal for boats 32' - 45' long, the Salt Gear Dolphin 1000 is a low profile windlass designed to take up less deck space and to run smoothly and silently under the deck. A powerful 1000 watt motor drives a vertical AISI 316L stainless steel shaft, for long-term trouble-free operation. This windlass features a high speed drop of up to 130'/min., and a manual free fall with adjustable clutch. It works with chain only or chain/rope combination.

Circuit Breaker
100 Amp (90100), included

Switches Required for Installation
Rocker Switch (90801) and optional Footswitch (90900B), sold separately

Included With Purchase
Windlass Head Unit, Motor, Gear Box, Solenoid, Circuit Breaker, Handle, Mounting Template and Installation Quick Guide

Specifications

Amp Draw Down: 25

Amp Draw Up: 55

Boat Weight: 17600 lbs

Chain Size: 5/16" HT G4

Circuit Breaker: 100 amp

Deck Thickness: 1" to 2" (Up to 2.5" with Longer Bolts - Customer Supplied)

For Boats: 32' - 45'

Line Size: 5/8"

Material: Stainless Steel

Max Anchor Weight: 35 lbs, Depending on Type

Max Chain Size: 5/16", 165' length

Max Ground Tackle Weight: 200 lbs

Model: D1012-10

Motor: 1000 Watt

Speed Down: 115'/min approx

Speed Up: 75'/min approx

Style: Vertical

Switch Gear: Rocker Switch #90801, Footswitch #90900B

Voltage: 12 Volt
