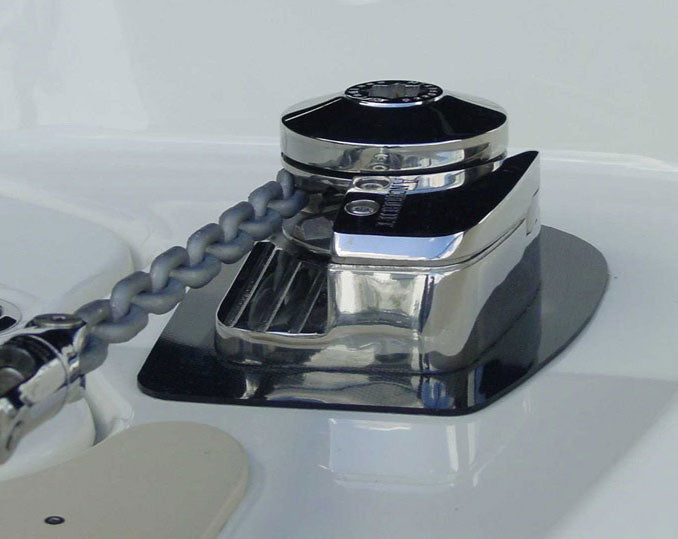

  • AnchorLift Barracuda Mounted
1 3

Salt Gear

Barracuda Windlass

$1,388.99 USD
$1,388.99 USD
Sale Sold out
Shipping calculated at checkout.
Model: Barracuda 900 Windlass
SKU:B912-7

Product Features:

  • Sleek low profile design takes up little room on deck
  • Barracuda 600 recommended for boats 20' to 30'; Barracuda 900 recommended for boats 20' to 35'
  • Accepts Chain: 1/4" HT G43; Rope: 1/2" double braided or 8 Plait (all chain or rope/chain rode)
  • Powerful 1000 watt motor
  • Includes circuit breaker and stainless steel backing plate
  • *For best results, pair with Salt Gear Brand Rode

Product Information

Description

Salt Gear's Barracuda Windlass is a powerful, compact and easy to install windlass. These Low Profile models take up little space on the deck. They are designed for smooth and silent motor/gear operation under the deck. The deck unit and vertical shaft are made of 316 Stainless Steel. These windlasses feature a highspeed drop of up to 125' per minute, manual free fall with adjustable clutch, and long term trouble-free operation.

Barracuda windlasses work with chain only or a rope/chain combination: 1/4" HT G43 chain and 1/2" double braided or 8 plait rope.

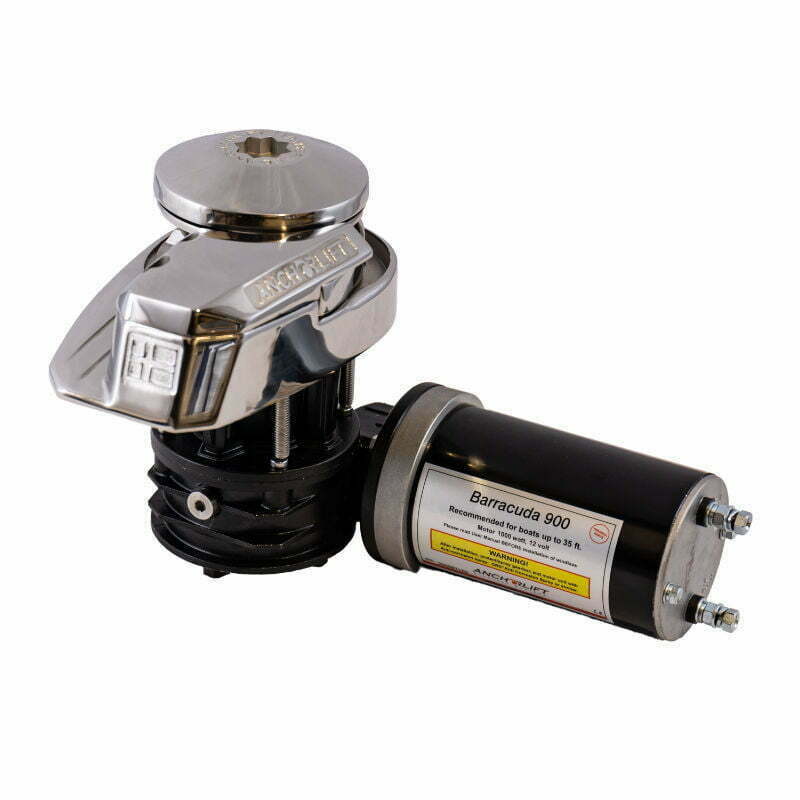

The Barracuda 900 has a larger diameter shaft and larger gearbox for more strength and power than the 600.

Circuit Breaker
Barracuda 600: 80 Amp (90080), included
Barracuda 900: 100 Amp (90100), included

Switches Required for Installation
Rocker Switch (90801) and optional Footswitch (90900B), sold separately

Included With Purchase
Windlass Head Unit, Motor, Gear Box, Solenoid, Circuit Breaker, Handle, Mounting Template and Installation Quick Guide

Specifications

Amp Draw Down: 25 Amp

Amp Draw Up: 47 Amp

Boat Weight Up To: 8800 lbs

Chain Size: 1/4" HT G43

Deck Thickness: 3/4" to 1.57" (2.5" with longer bolts)

Line Size: 1/2", 8 Plait or Double Braided

Material: 316 Stainless Steel

Max Anchor Weight: 22 lbs

Max Chain Size: 1/4", 165'

Max Ground Tackle Weight: 132 lbs

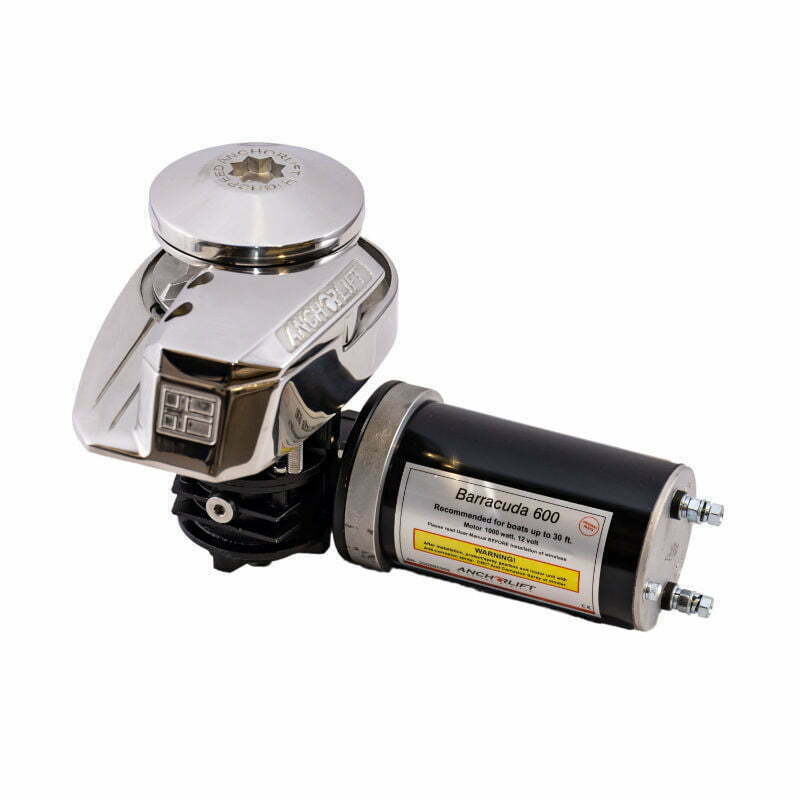

Model: B612-7 (600): Shaft and Gearbox: Small. Boats Up To: 30'. Circuit Breaker: 80 Amp.

Model: B912-7 (900): Shaft and Gearbox: Large. Boats Up To: 35'. Circuit Breaker: 100 Amp.

Motor: 1000 Watt

Rode Type: Rope/Chain

Rope Size: 1/2"

Speed Down: 125' / min.

Speed Up: 82' / min.

Style: Vertical

Switch Gear: Rocker Switch (90801), optional Footswitch (90900B)

Voltage: 12 Volt
