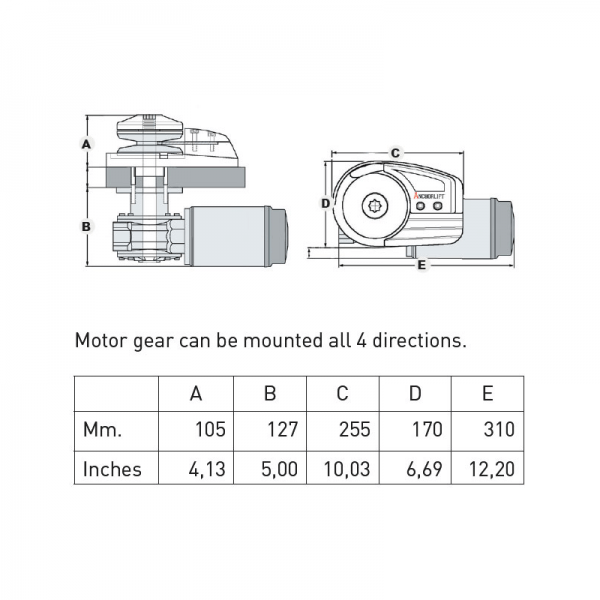

  • Anchorlift Mako 1500 Low Profile Windlass - Diagram
  • Anchorlift Mako 1500 Low Profile Windlass - Included
1 3

Salt Gear

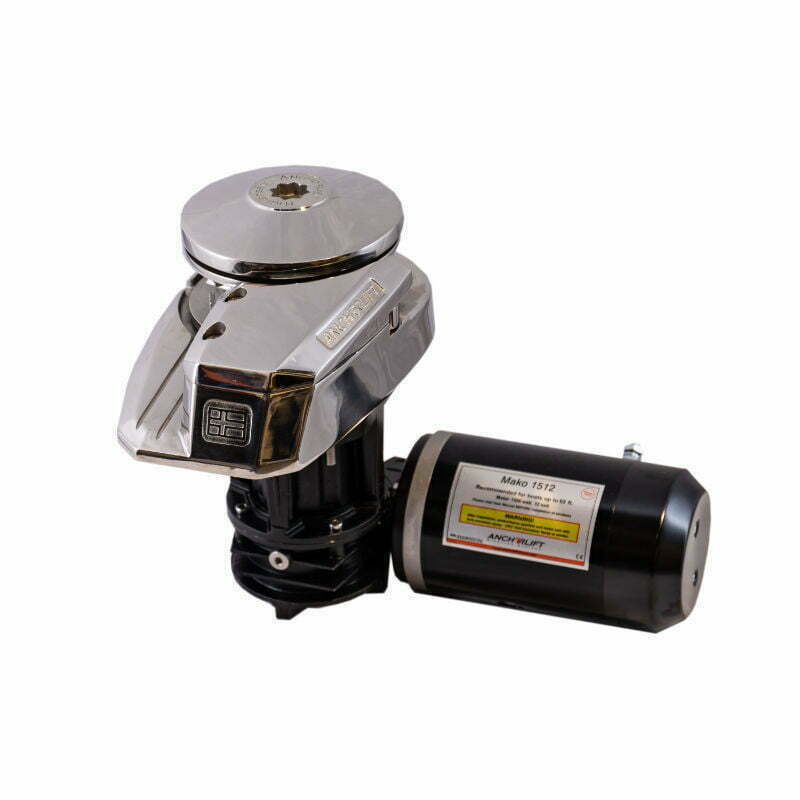

Mako 1500 Low Profile Windlass

$2,560.99 USD
$2,560.99 USD
Sale Sold out
Shipping calculated at checkout.
Style: For 5/16" Chain
Size: 12 Volt
SKU:M1512-08

Product Features:

  • Designed for smooth & silent motor/gear operation; takes up minimal deck space
  • Recommended for boats up to 65'
  • Up speed of up to 71' per minute at 240 lbs load
  • Accepts 5/16" or 3/8" (model dependent: see options) HT G4 Chain with 5/8" Rope (accepts rope, chain, or rope & chain rodes)
  • Includes circuit breaker and stainless steel backing plate
  • *For best results, pair with Salt Gear Brand Rode

Product Information

Description

The Salt Gear Mako 1500 Windlass is a powerful, low-profile, vertical windlass designed for boats up to 65'. This 1500 watt, 12/24 volt windlass accepts 5/16" or 3/8" (model dependent: see options) HT G43 chain and 5/8" rope. Operation is smooth and quiet thanks to the improved compact motor. It has a high speed drop of 125' per minute, plus a manual free fall adjustment.

The all 316 high-polished Stainless Steel construction offers long-term trouble-free operation, and the windlass works with chain only or chain/rope in combination.

Circuit Breaker
135 Amp (90135), included

Switches Required for Installation
Rocker Switch (90801) and optional Footswitch (90900B), sold separately

Included With Purchase
Windlass Head Unit, Motor, Gear Box, Solenoid, Circuit Breaker, Handle, Mounting Template and Installation Quick Guide

Specifications

Amp Draw Down: 55amp, 12v

Amp Draw Up: 115amp normal load

Boat Up To: 65'

Boat Weight: 60000 lbs

Circuit Breaker: 135 amp

Material: 316 Stainless Steel

Max Ground Tackle Weight: 352 lbs

Max Power Pull: 2607 lbs

Max Working Load: 1067 lbs

Motor: 1500 watt

Rope Size: 5/8"

Speed Down: 125' / minute

Speed Up: 71' / minute at 240 lbs load

Style: Vertical

Switch Gear: Rocker Switch 90801, Footswitch 90900B

Voltage: 12 volt / 24 volt (based on model)
